SAHP 200 - Solar-Assisted Heat Pump

SAHP 200

The SAHP200 is the perfect solution for most homes and smaller commercial units, combining innovative solar assisted heat pump technology with an ERP-A rated, 200 litre stainless steel cylinder.

The SAHP200 is the all in one solution to your hot water heating requirements. The SAHP200 offers either direct, indirect, unvented, vented cylinder, suitable for every installation. This hot water heating and storage system has been tested to UL standards and utilises our already proven technologies. The SAHP200 transfers this energy to water within its casing, to efficiently and effectively handle the water heating. The SAHP200 is sold with an improved controller that offers connectivity to existing solar PV inverters.

See Specifications Get a Quote

Water
Nominal capacity	200 L
Target water Temperature (Max.)	55° C
Operating pressure (Max.)	7 Bar
Operating pressure (Avg.)	3 Bar
Connections (Compression)	22 mm
Weight (Empty)	106 Kg
Weight (Full)	306 Kg
Heat loss (KW per 24 hours)	0.90 KW

SAHP-200 Specifications

Electrical
Power supply	230V
Frequency	50 Hz
HP thermal power (Max.)	2,000 W
HP electrical input (Avg.)	500 W
Element thermal power (Max.)	1,500 W
Element electrical input (Avg.)	1,500 W
Total thermal power (Max.)	3,500 W
Total electrical input (Avg.)	2,000 W

Refrigeration
Refrigerant charge (R134a/513a)	1.2 Kg
L.S operating pressure (Max.)	6 Bar
L.S. operating pressure (Avg.)	3 Bar
H.S. operating pressure (Max.)	28 Bar
H.S. operating pressure (Avg.)	12 Bar
Connections (Flare)	3/8"

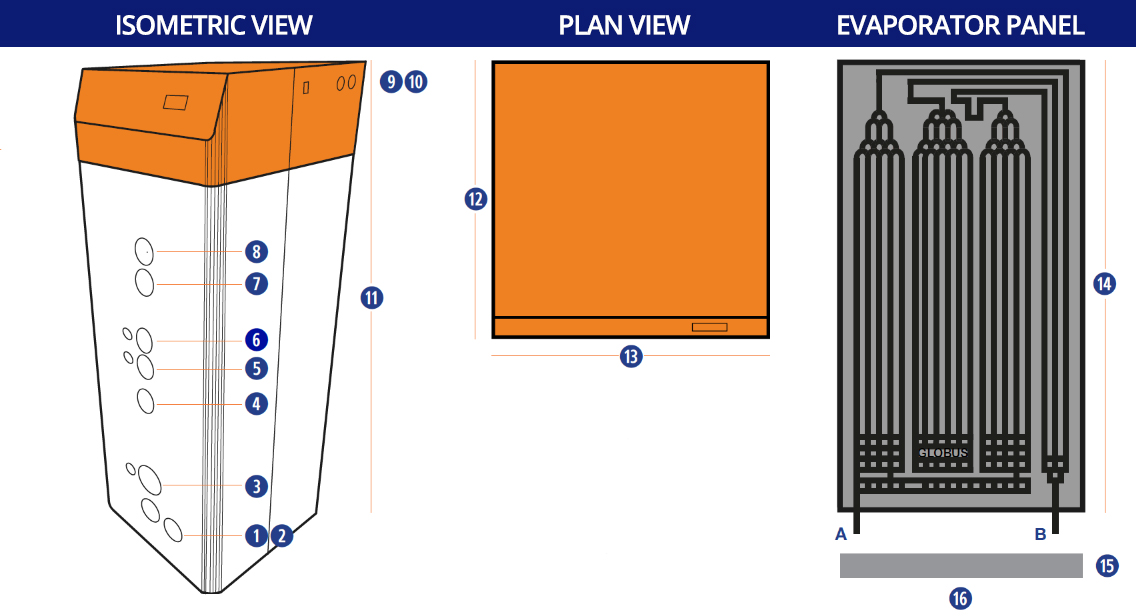

SAHP-200 Dimensions

Tappings
Cold water inlet (1)	180 mm
Auxiliary boiler coil exit (2)	180 mm
Element heater (3)	275 mm
Auxiliary boiler coil entry (4)	680 mm
HP sensor cable pocket (5)	780 mm
Additional thermostat pocket (6)	880 mm
T&P relief valve (7)	1,180 mm
Hot water outlet (8)	1,380 mm
Refrigeration copper tube exit (9)	1,595 mm
Refrigeration copper tube entry (10)	1,595 mm

SAHP
Height (11)	1,680 mm
Depth (12)	600 mm
Width (13)	600 mm

Evaporation Panel
Height (14)	1,700 mm
Depth (single/double) (15)	25 mm / 100 mm
Width (16)	800 mm

Clearances
Front	375 mm
Top	100 mm

A = Refrigerant Gas Out
B = Refrigerant Liquid In

Solar-Assisted Heat Pump SAHP-200 Specifications from Best Building Materials

SAHP-200 Components

Components
Immersion	Factory fitted 1.5 Kw titanium heating element and thermostatic controls Factory fitted 22 Kw high performance auxiliary boiler coil
Cold water	Cold water inlet control kit comprising of 0.3 MPa (3 Bar) pressure reducing valve, 0.6 MPa (6 Bar) pressure relief valve, line strainer, non-return valve, a balance cold water connection, nuts and olives. 0.3 MPa (3 Bar) Expansion vessel
Safety	Factory fitted temperature and pressure relief valve set at 90OC / 0.7 MPa (7 Bar) 15/22 mm Tundish Additional thermostat and thermal cut out
Electrical	22 mm 2 port motorised valve
Refrigeration	2 x 15 M coil refrigeration grade 3/8 ” polished copper tube 2 x 15 M coil refrigeration grade 3/8 ” armacell class 0 insulation
Fixing	6 x L-shape aluminium wall fixing bracket, 6 x stainless steel fixing screw, 6 x stainless steel M6 bolt, 6 x stainless steel M6 locking nut
