| Electrical | Single | Double |
|---|---|---|
| Power supply | 230V | 230V |
| Frequency | 50 Hz | 50 Hz |
| HP thermal power (Max.) | 2,000 W | 2,000 W |
| HP electrical input (Avg.) | 500 W | 500 W |
| Water | Single | Double |
|---|---|---|
| Maximum capacity | 300 L | 300 L |
| Target water Temperature (Max.) | 55° C | 55° C |
| Operating pressure (Max.) | 3 Bar | 3 Bar |
| Connections (Compressions) | 3/4" male | 3/4" male |
| Weight | 30 Kg | 31 Kg |
| Refrigeration | Single | Double |
|---|---|---|
| Refrigerant charge (R134a/513a) | 700 g | 850 g |
| L.S operating pressure (Max.) | 6 Bar | 6 Bar |
| L.S. operating pressure (Avg.) | 1.5 Bar | 28 Bar |
| H.S. operating pressure (Max.) | 28 Bar | 28 Bar |
| H.S. operating pressure (Avg.) | 12 Bar | 12 Bar |
| Connections (Flare) | 3/8" | 3/8" |

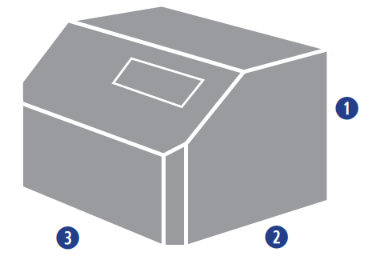

| LMTB | Single | Double |
|---|---|---|
| Height (1) | 340 mm | 340 mm |
| Depth (2) | 340 mm | 340 mm |
| Width (3) | 440 mm | 440 mm |

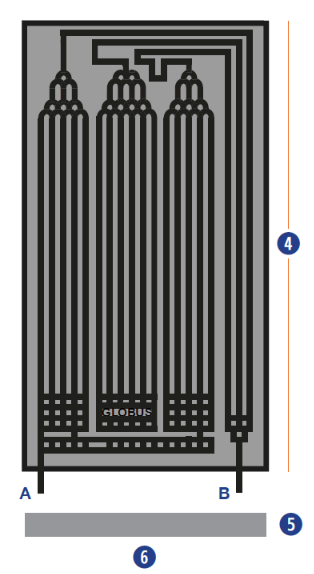

| Evaporation Panel | Single | Double |
|---|---|---|
| Height (4) | 1,700 mm | 1,700 mm |
| Depth (5) | 25 mm / 100 mm | 100 mm |
| Width (6) | 800 mm | 800 mm |
| Clearances | ||
|---|---|---|
| Front | 150 mm | |
| Back | 150 mm | |
| Left | 150 mm | |
| Right | 150 mm |
